Architecture

This page gives a high-level view of how the library is structured and how the core classes interact, aligned with the paper’s Section 2.1.

Class diagram

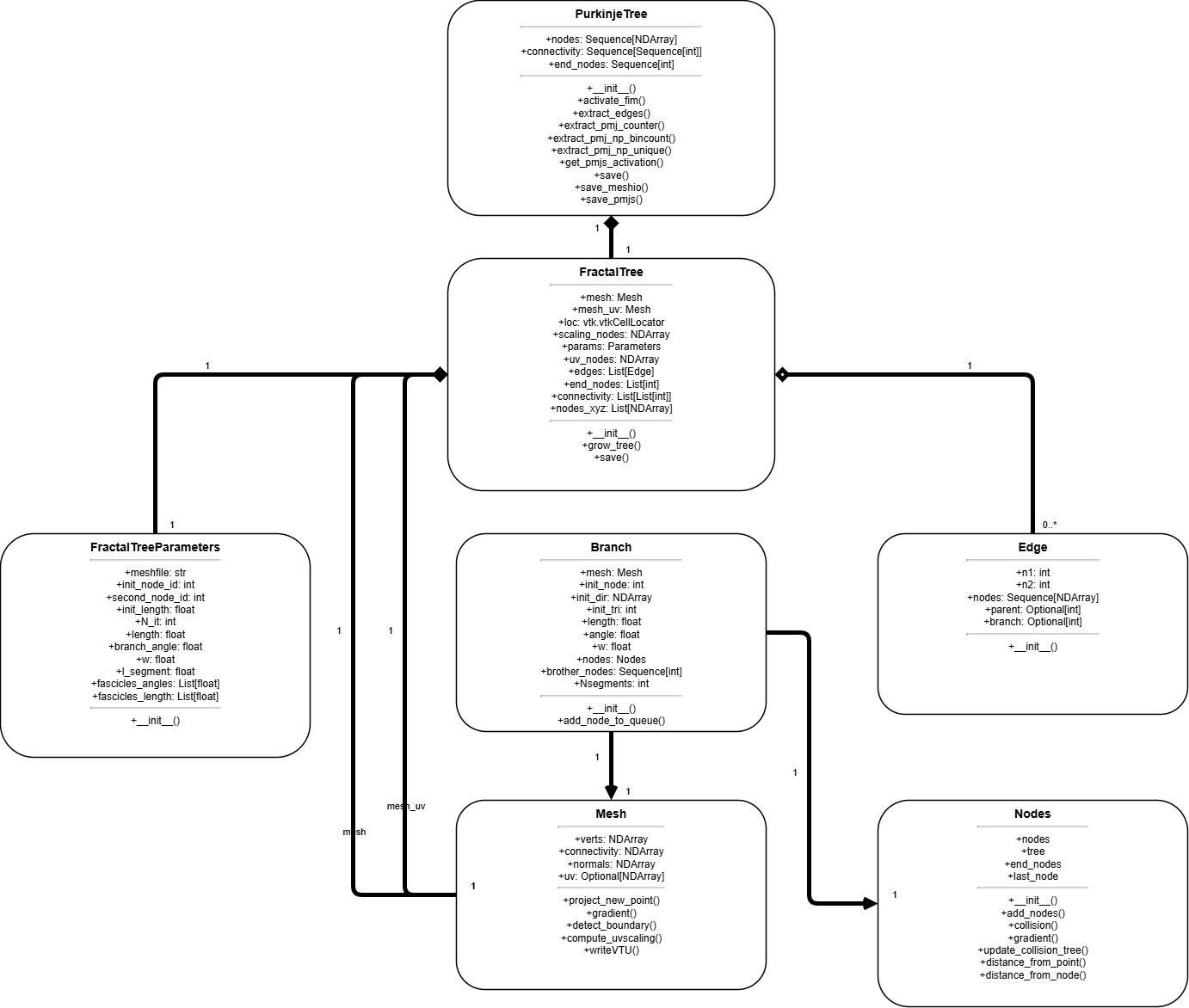

Fig. 1 High-level UML for the generation and activation stack.

Relationships (at a glance)

• PurkinjeTree ◼→ FractalTree: composition 1 → 1

• FractalTree ◼→ FractalTreeParameters: composition 1 → 1

• FractalTree ◼→ Mesh (role: mesh): composition 1 → 1

• FractalTree ◼→ Mesh (role: mesh_uv): composition 1 → 1

• FractalTree ◇→ Edge: aggregation 1 → 0..*

• Branch → Mesh: association 1 → 1

• Branch → Nodes: association 1 → 1

Workflow overview

Fig. 2 End-to-end workflow: parameterize → generate (FractalTree) → build (PurkinjeTree) → activate → save.

Object lifecycle (short)

1. Initialize FractalTreeParameters and load Mesh.

2. Create FractalTree(params) and call grow_tree(): - internally creates/uses Branch objects, - accumulates Edge entries and 3D nodes_xyz + connectivity, - maintains end_nodes.

3. Build PurkinjeTree(nodes=..., connectivity=..., end_nodes=...).

4. (Optional) Extract PMJs, run activation (e.g., activate_fim()).

5. Persist with save(), save_meshio(), and save_pmjs().

Assumptions & invariants

See Data Model Invariants for the formal checklist (acyclic connectivity, degree-1 terminals, valid node indices, no self-edges, etc.).

API reference

For the full public surface (methods, parameters, and module layout), see purkinje_uv.
